Complete Fire Pump
Systems &
Packages
UL-listed and FM-approved fire pump systems engineered to protect lives and critical assets. From commercial buildings to oil & gas facilities — NFPA 20 compliant packages, designed and assembled to the highest standards.
Complete Range of
Fire Protection
Equipment
Model 5010 ES

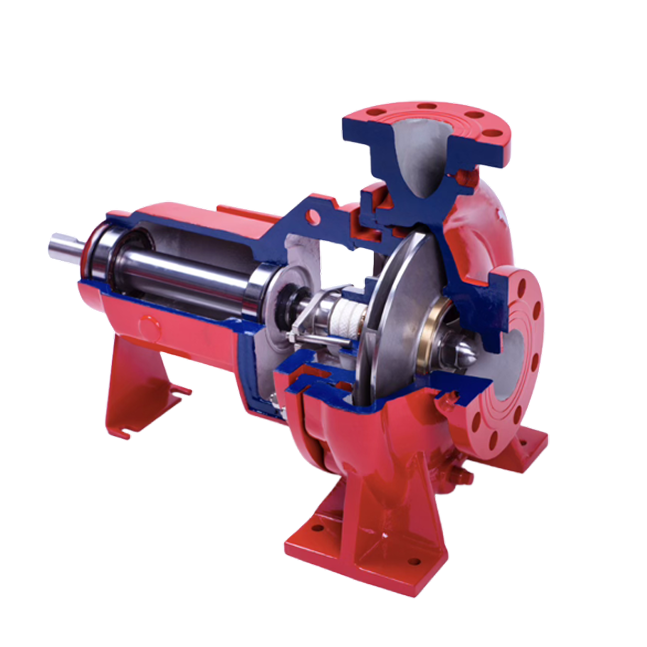

End Suction Fire Pumps
Single-stage horizontal end suction design — the most common fire pump configuration for commercial and light industrial applications.
- Flow: 50 – 2,000 GPM
- Pressure: 40 – 220 PSI
UL Listed
FM Approved
Model 5020 VI

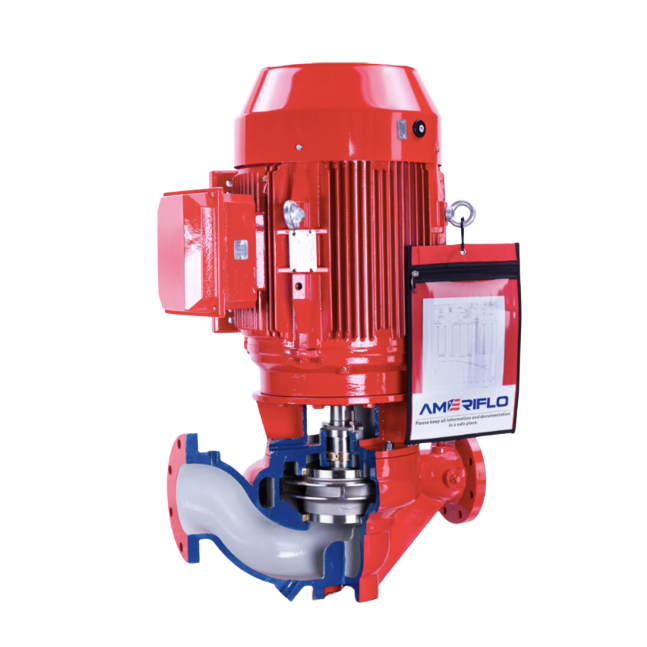

Vertical Inline Fire Pumps
Space-saving in-line design with motor mounted directly above pump — ideal for confined mechanical rooms and retrofit installations.
- Flow: 50 – 2,000 GPM
- Pressure: 40 – 220 PSI
UL Listed
FM Approved
Model 5030 SC

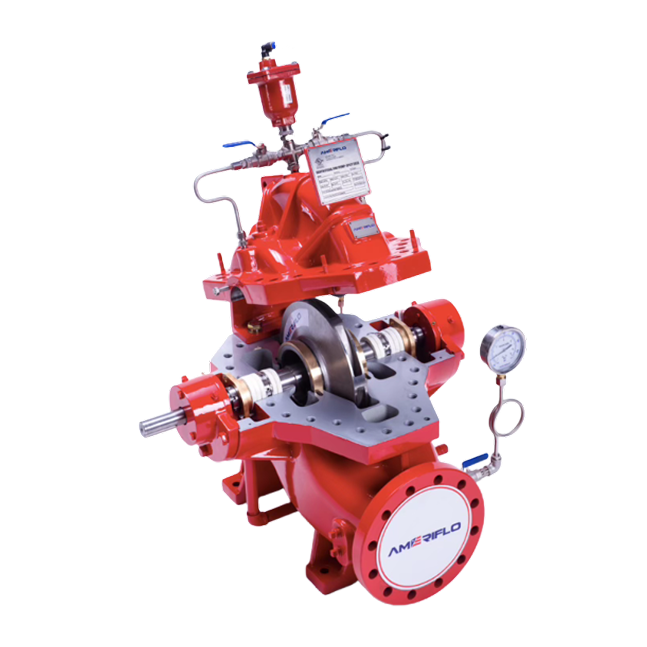

Split Case Fire Pumps
Horizontal split case design providing maximum hydraulic coverage for large-scale industrial, oil & gas, and high-rise applications requiring very high flow rates.
- Flow: 300 – 8,000 GPM
- Pressure: 40 – 610 PSI
UL Listed
FM Approved
High Flow
Model 5040 VT

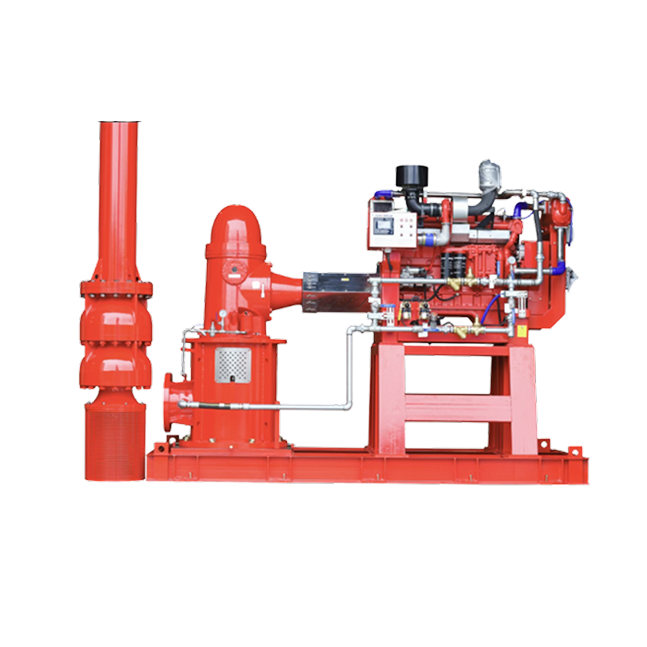

Vertical Turbine Fire Pumps
Wet-pit and deep-well vertical turbine configuration — the choice for tank farm protection, large industrial facilities, and underground water supply sources.
- Flow: 100 – 6,000 GPM
- Pressure: 40 – 377 PSI
UL Listed
FM Approved
Diesel Driver

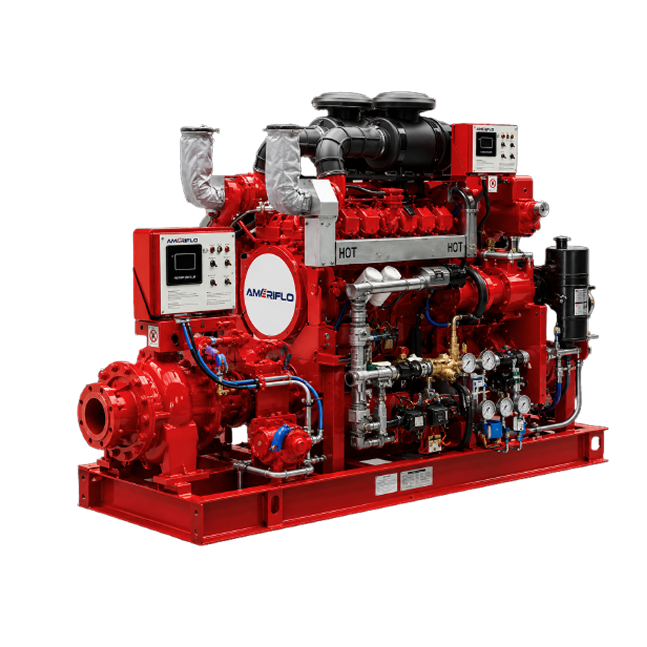

Fire Pump Diesel Engines
UL-listed diesel engine drivers providing fully independent fire pump operation — mandatory backup power for critical applications where electrical reliability cannot be guaranteed.
- Standard: NFPA 20 / UL 20
- Run time: 8 hr min (base)
UL 20 Listed
Accessory

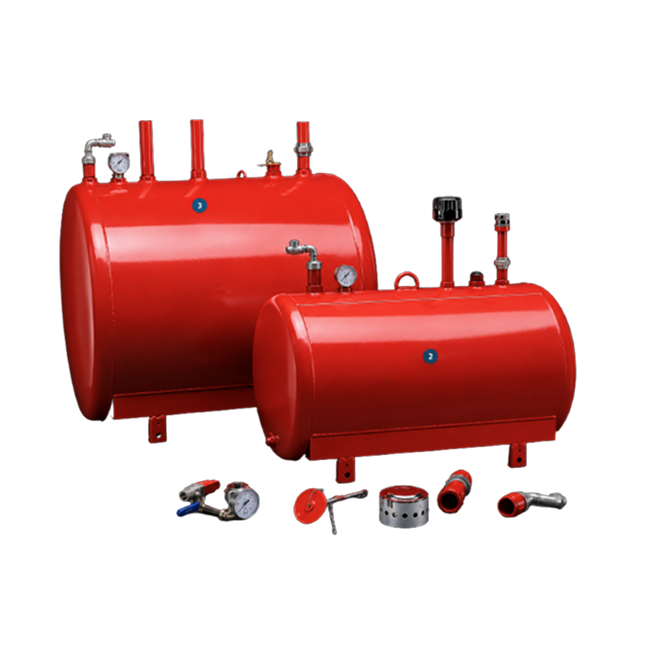

UL-142 Fuel Tank Systems
NFPA 20-compliant fuel day tanks and sub-base tanks for diesel fire pump drivers — factory-installed, tested, and ready to connect to your pump package.
- Standard: UL 142 / NFPA 30
UL 142 Listed
Complete Hydraulic
Coverage
Across All Models
|
Model
|
Type
|
Flow Range
|
Pressure
|
|---|---|---|---|
|
5010 ES
|
End Suction
|
50 – 2,000 GPM
|
40 – 220 PSI
|
|
5020 VI
|
Vertical Inline
|
50 – 2,000 GPM
|
40 – 220 PSI
|
|
5030 SC
|
Split Case (Horizontal)
|
300 – 8,000 GPM
|
40 – 610 PSI
|
|
5040 VT
|
Vertical Turbine
|
100 – 6,000 GPM
|
40 – 377 PSI
|
Factory Tested
Every package is hydrostatically tested and performance-verified before shipment.
NFPA 20 Compliant
All systems comply with the latest edition of NFPA 20 Standard for Stationary Fire Pumps.
Custom Engineering
Each package is engineered to your specific flow, pressure, voltage, and site requirements.
Complete Hydraulic
Coverage
Across All Models
NFPA 20
Installation Standard
All fire pump packages comply with NFPA 20 — Standard for the Installation of Stationary Pumps for Fire Protection — covering design, installation, and performance requirements.
UL Listed
Underwriters Laboratories
UL-listed pumps, drivers, and controllers provide third-party verification that every component meets stringent safety and performance standards required by insurance carriers and AHJ.
FM Approved
Factory Mutual
FM Approval indicates that our fire pump packages have been rigorously tested by FM Research and meet FM Global's Property Loss Prevention Data Sheets for fire protection equipment.
Request a Fire
Protection Consultation
Our fire protection engineers will analyze your project requirements, select the appropriate pump configuration, and provide a complete engineered package specification and quotation.
System Sizing
Hydraulic calculations and pump selection based on your flow and pressure requirements.
Package Engineering
Complete package drawings, specifications, and Bill of Materials for your review and approval.
Compliance Review
NFPA 20 compliance documentation and AHJ submittal package if required.
Fire Protection Inquiry
Complete the form below and an engineer will respond within one business day.
